Conveying Equipments

Conveying Equipments

Welcome to our Conveying Equipments section, where efficiency meets innovation. We offer a comprehensive range of products designed to streamline material handling and transportation. Our Bag Stacker is perfect for optimizing warehouse operations, while our Bucket Elevator and Z-Type Elevator are ideal for vertical lifting. For horizontal transport, our Cold Store Conveyor and Flat Belt Conveyor provide reliable solutions. The Drag Chain Conveyor is designed for heavy-duty tasks, and the Gravity Conveyor offers simplicity without sacrificing performance. Discover how our Conveying Equipments can enhance your operational efficiency and productivity.

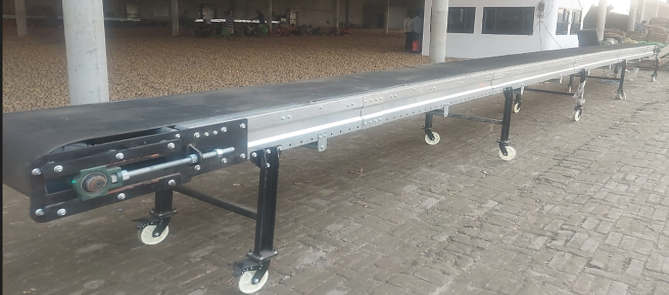

COLD STORE CONVEYOR

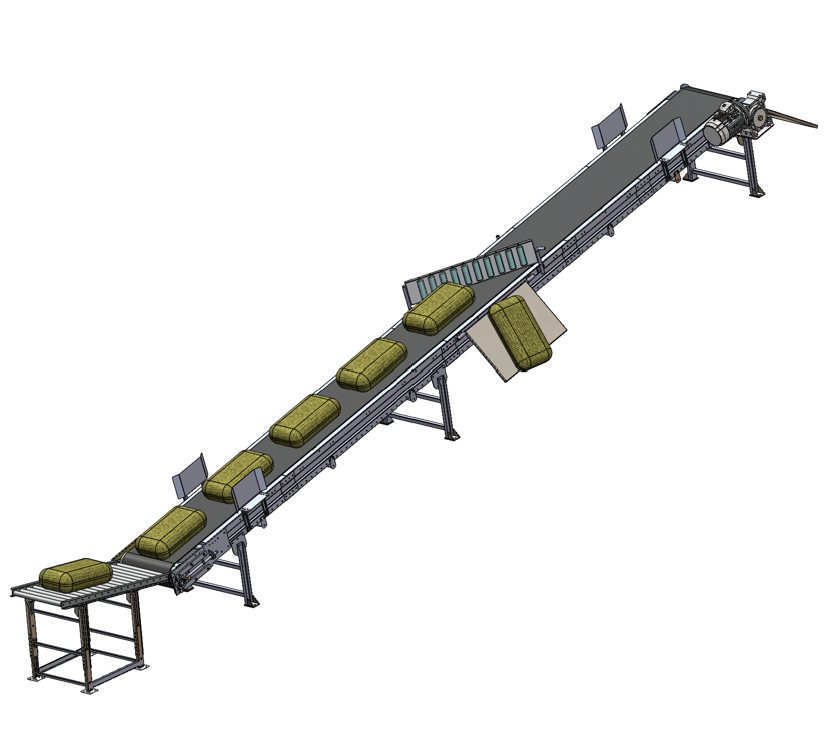

BAG LOADING / UNLOADING CONVEYOR

RB Agri Engineering's Loading/Unloading Conveyor, your solution to labor shortages and time-consuming loading processes. With its high capacity and low maintenance requirements, this conveyor offers enormous savings in labor costs and time consumption. Designed for efficiency, it streamlines your operations, delivering a high return on investment. Say goodbye to manual labor struggles and hello to increased productivity and cost-effectiveness. Revolutionize your workflow today with our innovative conveyor system.


Bag Stacker is used for loading and unloading in various places. Bag Stacker can be used to load/unload the potato/onion bag, sugar bag, rice bags, salt bags, wheat bags and all grain bags.

Technical Details:

Width of belt: 600 mm, NN 3ply 8 mm thickness

Head and tail pulley dia: 250mm with crowning and rubber lining for better traction

Idler supporting rollers dia: 50mm

Head & Tail shaft dia.: 45mm

Tail shaft tensioner: Provided

Main body: G.I. sheet

Motor: 2-10 HP, 3 Ph (as per length) geared motor with VFD

Linear Velocity: Approx. 30 m/min

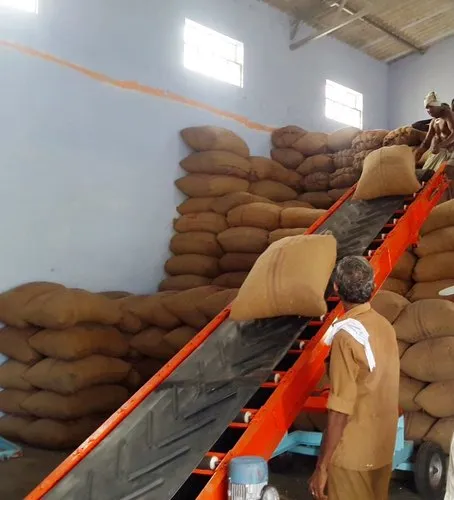

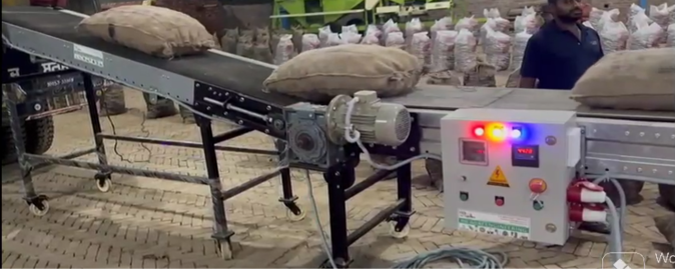

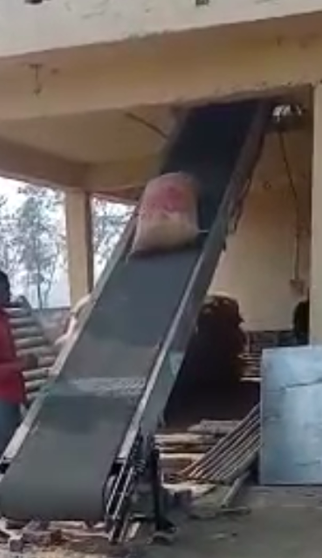

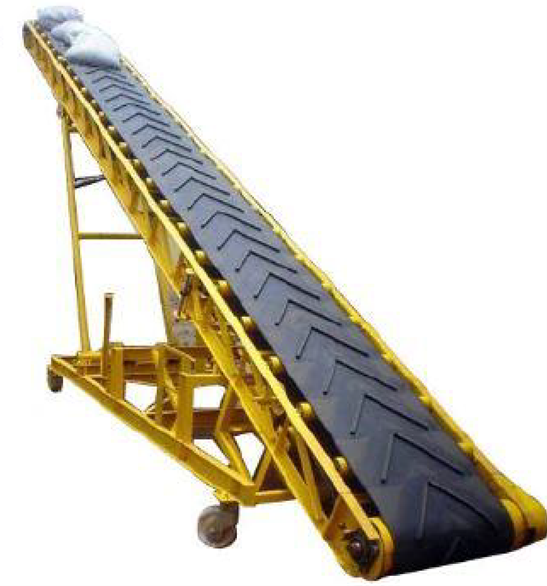

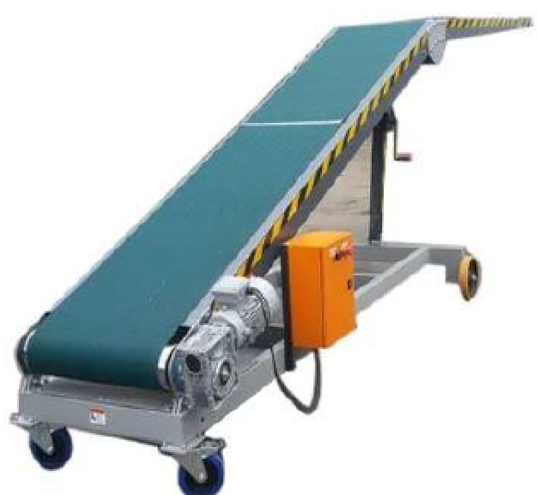

Bag Stacker/Truck loading/Unloading Conveyor

Bag Stacker

Our Bag Stacker, or Truck Loading and Unloading Conveyor, is a versatile solution designed to make loading and unloading efficient and straightforward. Whether you're handling bags of potatoes, onions, sugar, rice, salt, or other grains, this conveyor system offers a seamless way to transport these heavy loads with ease. Its adaptability allows it to be used in various environments, from agricultural settings to warehouses and logistics centers. With its durable construction and adjustable design, our Bag Stacker ensures quick and reliable operations, reducing manual labor while boosting productivity


Bag Stacker is used for loading and unloading in various places. Bag Stacker can be used to load/unload the potato/onion bag, sugar bag, rice bags, salt bags, wheat bags and all grain bags.

Truck Loader Conveyor Application & Silent Features

Vehicle Loading and Unloading for all applications ranging from Bags, Boxes, Crates, Cartons, Oil Tins, Oil Drums, Barrels, etc.

Equipped with Mechanical jack or Hydraulic cylinder & Power pack for variable height adjustment depending on Site conditions at a controlled rate.

Used in warehouses, packaging industries, sugar industries, distilleries, pharmaceuticals industries, etc.

Excellent design, runs smoothly. Easy to use, hence increases operator efficiency. Reduces manpower, and saves valuable time.

Services

Services for all Truck Loaders

Spares parts for all Truck Loaders.

Capacity: approx. 700 bags/hrs

Type: Mechanical / Hydraulic type

Material of Frame: GI/Carbon Steel/Stainless Steel

Size: Customized Design

Technical Details

POWER & CAPACITY:-

GEAR MOTOR -:3hp (as per length)

CAPACITY: - 700~900 bags/hours

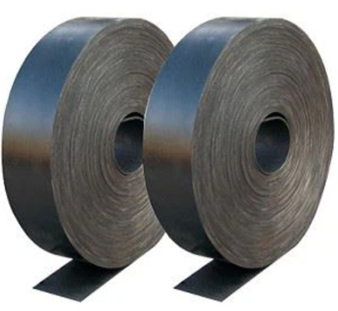

Belt Details:-

Width -: 600 mm

Type -: NN 3ply 8 mm

thickness Rough Top

Mechanical jack or

Hydraulic operated (as per requirement)

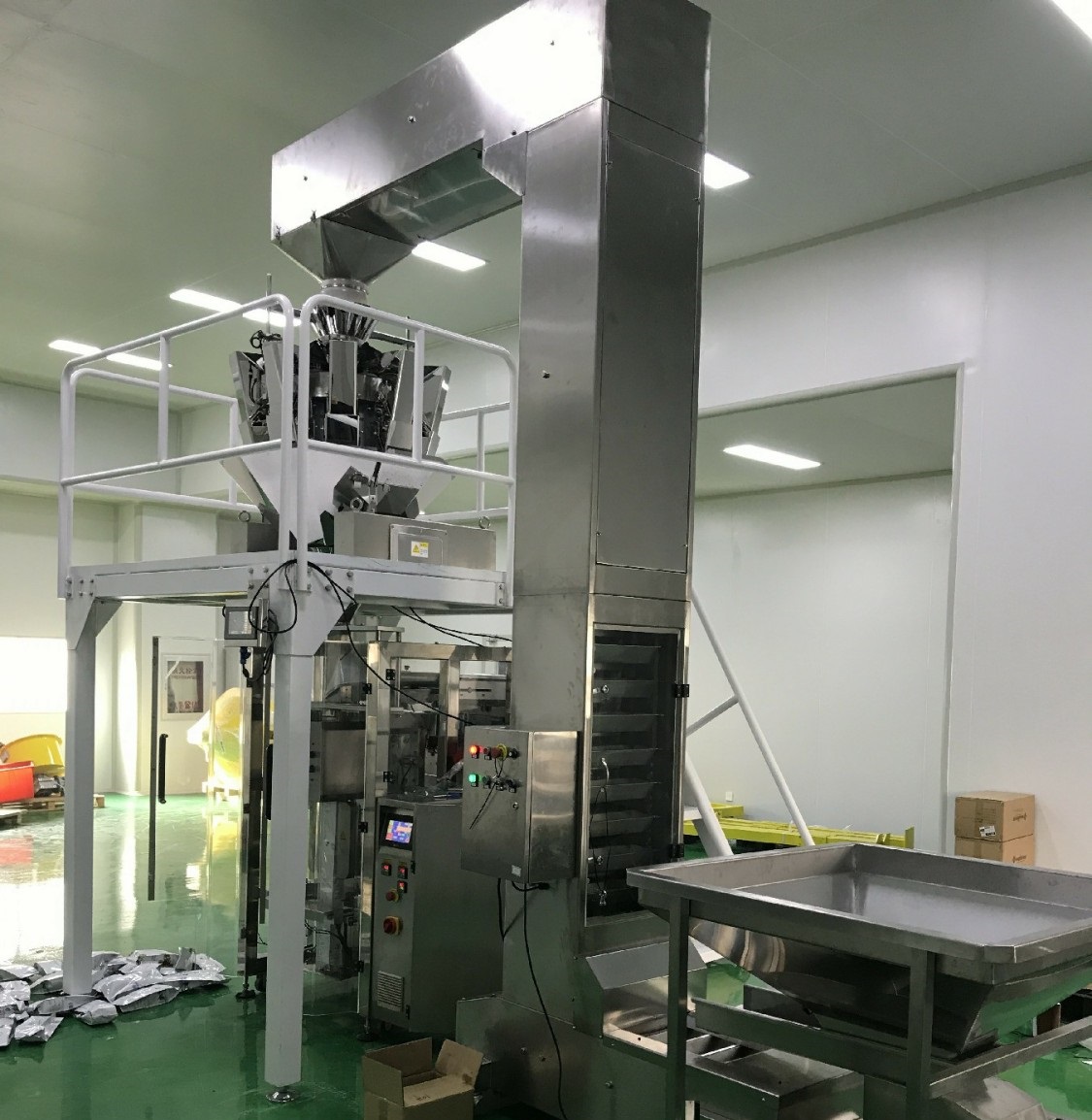

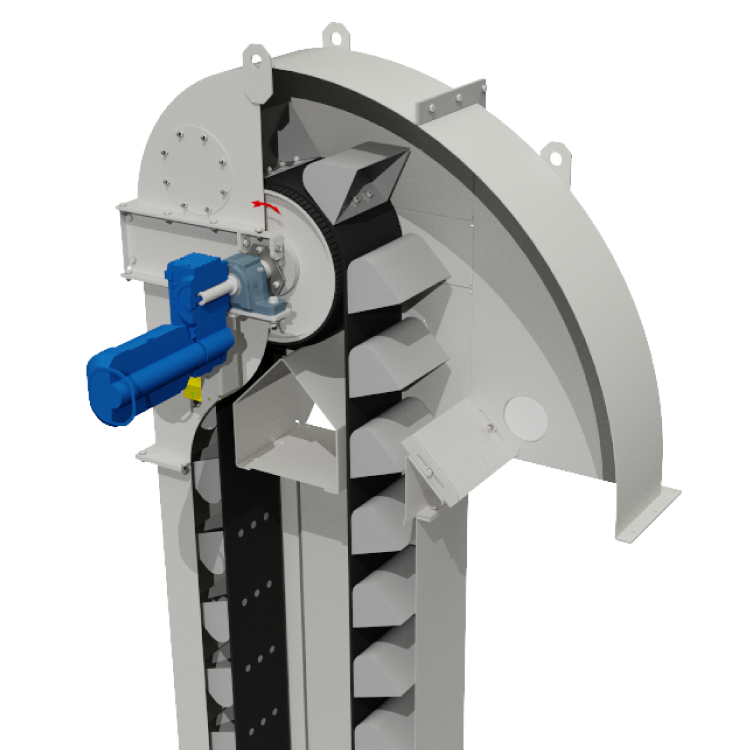

VERTICAL BUCKET ELEVATOR

Bucket Elevator

RB Agri Engineering's vertical bucket elevators are meticulously designed for the gentle vertical conveying of various granular products, ensuring minimal damage during transportation. Our elevators excel, particularly in the seeds and grains sector, where preserving product integrity is paramount. Trust RB Agri Engineering for efficient, reliable, and gentle handling solutions tailored to your industry needs.


RB Agri Engineering vertical bucket elevator are used for gentle vertical conveying of all kinds of granular product with minimal damage. Especially on the seeds & grains sector..

Technical Details:

Capacity: 3 to 50 tons/hr

Main body: G.I. sheet or MS

Belt type: NN, 3 ply, 8 mm thick

Motor: Inline helical gear motor

Power: As per elevator capacity

Speed: Slow speed

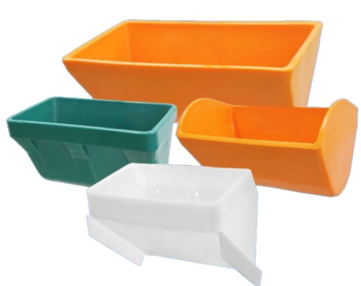

Buckets: Food grade plastic, size as per capacity

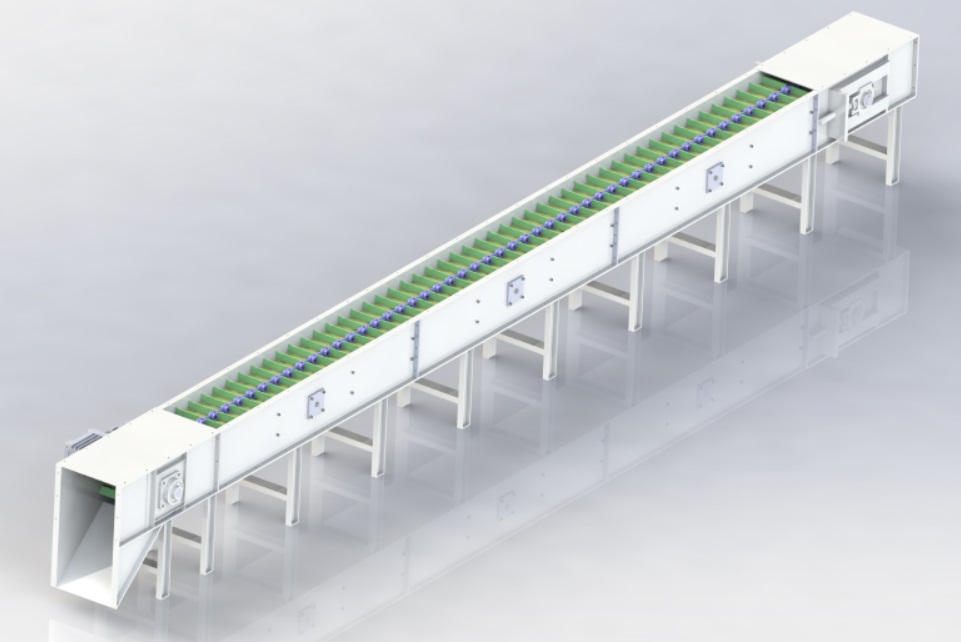

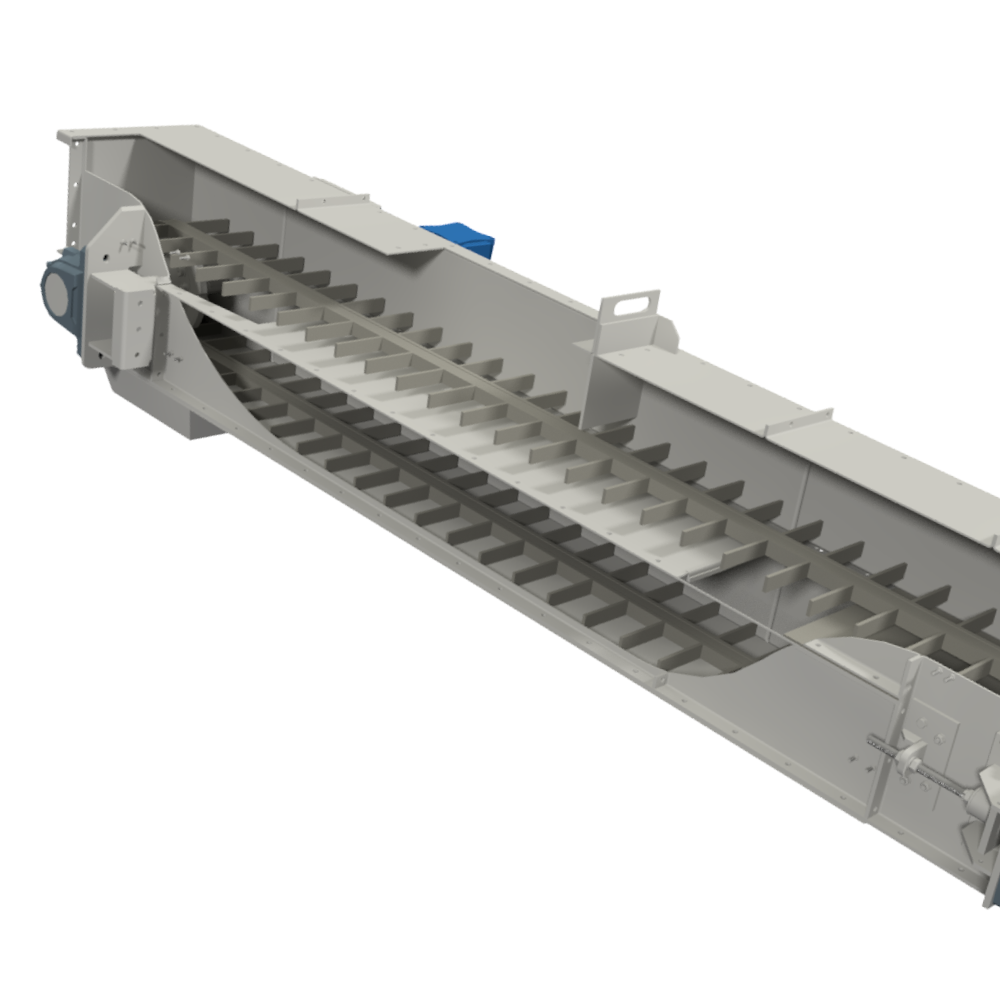

Drag Chain Conveyor

BAG LOADING / UNLOADING CONVEYOR

RB Agri Engineering's Introducing our Drag Chain Conveyor, a reliable solution for seamless material transport in various industries. With evenly spaced flights mounted on a continuous chain, this conveyor efficiently moves coal, wood, refuse, and more. Ideal for power plants, pulp and paper mills, as well as grain and seed industries, it ensures smooth and consistent operation. Whether it's handling tough materials or ensuring steady flow, our Drag Chain Conveyor delivers reliability and efficiency at every turn. Experience hassle-free material handling with our robust conveyor system.


Drag Conveyors consist of evenly spaced rounded or rectangular flights mounted on a continuous chain that travels around a drive and a tail sprocket.

Drag chain conveyors are commonly utilized to transport coal, wood, refuse, or scrubber sludge in power plants, pulp and paper mills, and in grain/seed industries.

Technical Details:

Technical specifications vary as per suitability.

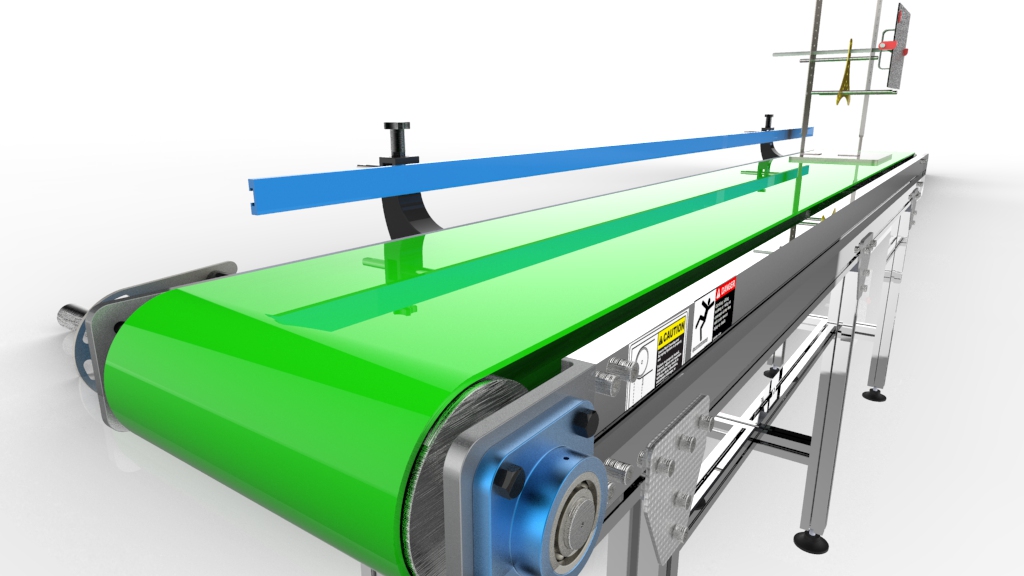

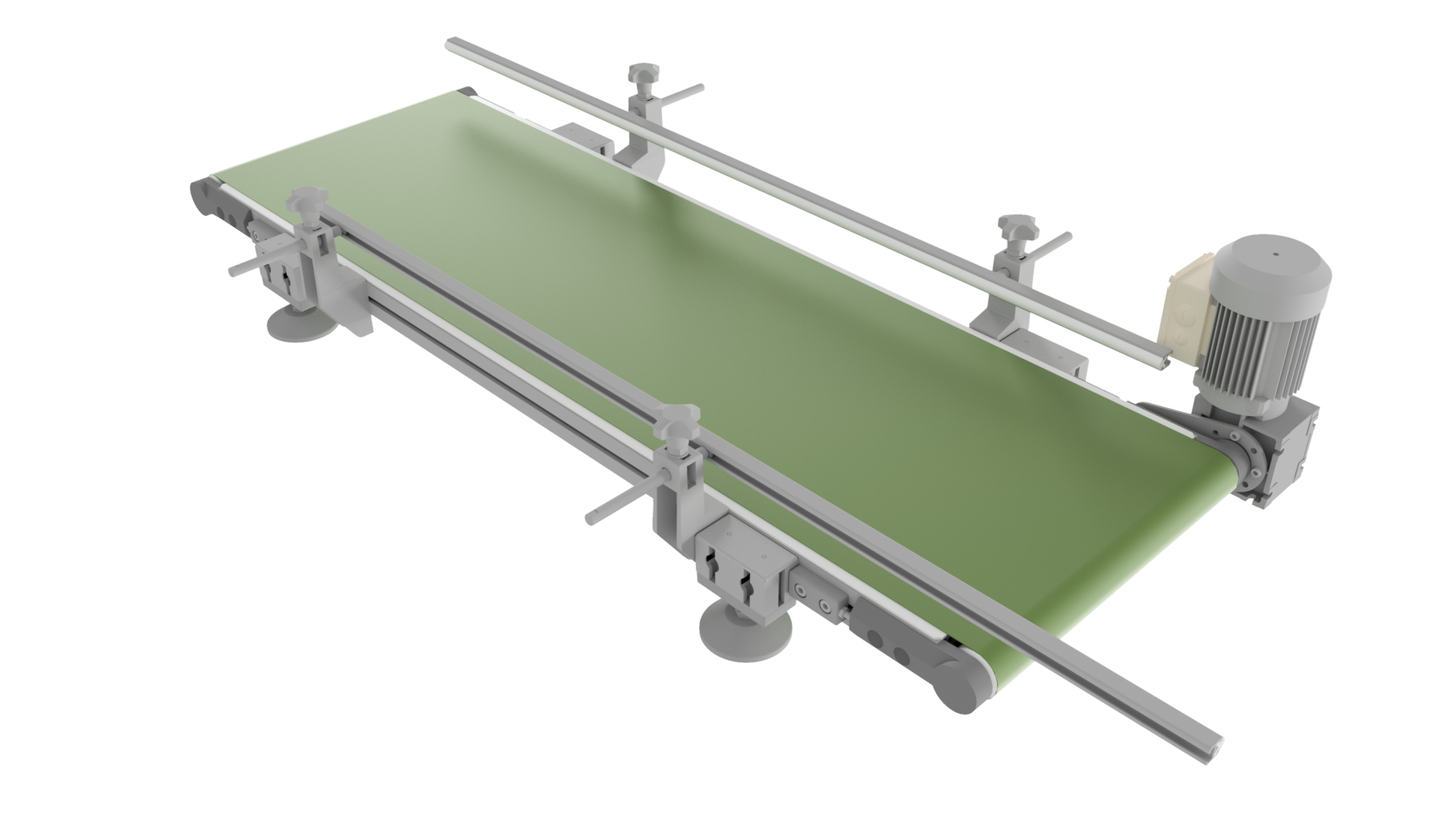

Flat Belt Conveyor

FLAT BELT CONVEYOR

RB Agri Engineering's discover the versatility of our Flat Belt Conveyor system, designed to effortlessly transport an array of goods including carton boxes, plastic crates, totes, bags, components, and more. Engineered for efficiency, it tackles labor shortages head-on while significantly reducing loading/unloading time and associated costs. Revolutionize your workflow with seamless material handling and experience heightened productivity and cost-effectiveness. Say goodbye to manual struggles and hello to streamlined operations with our Flat Belt Conveyor solution.


Discover the versatility of Flat Belt Conveyors, offering an efficient solution for transporting a variety of goods including carton boxes, plastic crates, totes, bags, and components.

With their flat surface and smooth operation, Flat Belt Conveyors ensure seamless movement of materials across different industries, enhancing workflow efficiency.

These conveyors effectively overcome labor shortages and reduce loading/unloading time and costs, making them invaluable assets for businesses striving to streamline operations and boost productivity.

Choose Flat Belt Conveyors for their adaptability, reliability, and ability to deliver efficient material handling solutions tailored to your specific needs.

Technical Details:

Technical specifications vary as per suitability.

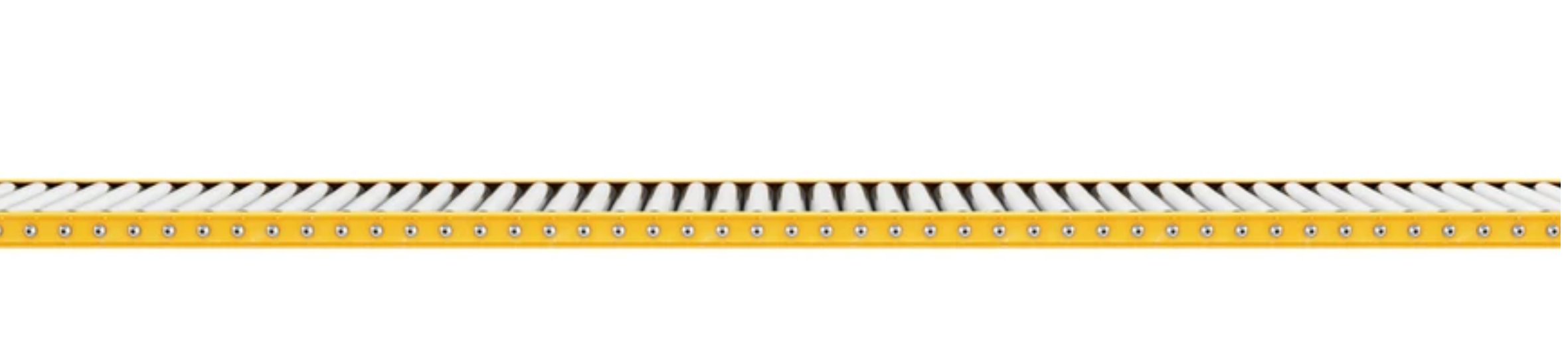

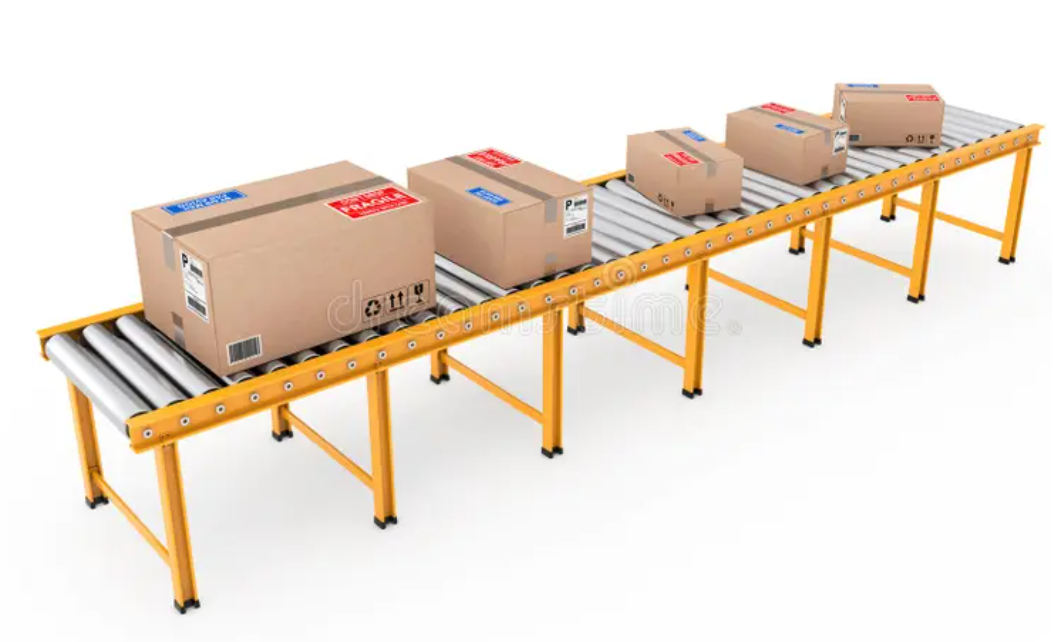

Graivity Conveyor

GRAVITY CONVEYOR

RB Agri Engineering's Gravity roller conveyor lets a product move on rollers using the force of gravity. Gravity conveyors may be used to move boxes, cartons and rigid bottoms items.


Technical Details:

Load Capacity: 30-200kg per Roller

Roller Diameter: 50/60/76mm

Material of Frame: GI/Carbon Steel/Stainless Steel

Size: Customized Design

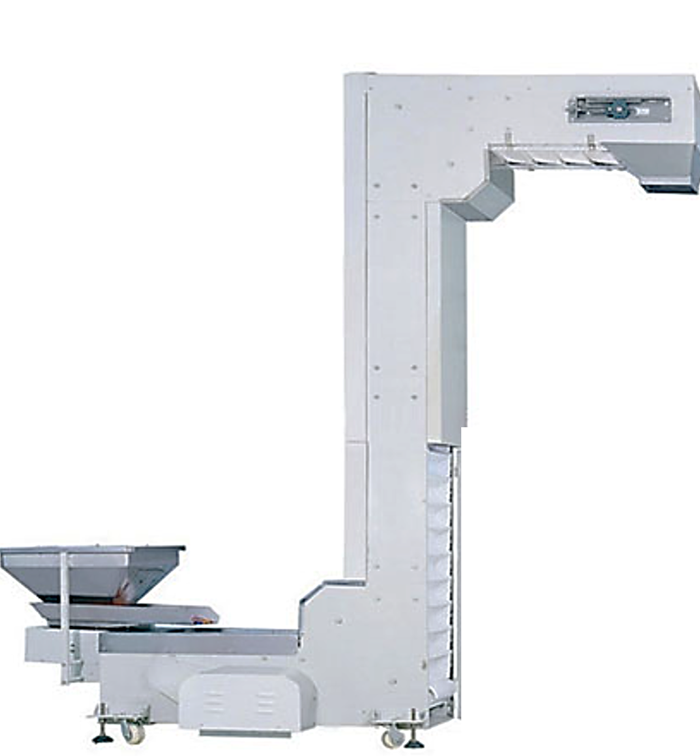

Z-Type Conveyor

Z-TYPE CONVEYOR

RB Agri Engineering's Introducing our Z-Type Elevator, the ideal solution for gentle vertical conveying of various granular products. Specifically designed for the seed sector, these conveyors ensure smooth and efficient transportation.


Z type bucket elevator is used for very gentle vertical conveying of all kinds of granular product. Especially on the seed sector, they are most suitable conveyors.

Product specifications:

  • Capacity: Up to 8 tons
  • Main Body: G.I. Sheet
  • Chain/Sprocket: 1 1/4" & 1 1/2" pitch
  • Motor: 2-3 HP, 3 Ph (as per length) Geared motor with VFD
  • Speed: Slow speed
  • Buckets: 1.8 liters & 4 liters

Contact us for help?

Contact Us: For assistance or inquiries about our products, please reach out to our support team at rb@rbagriengineering.com or call us at (+91) 9896704438
(+91) 9306368635
